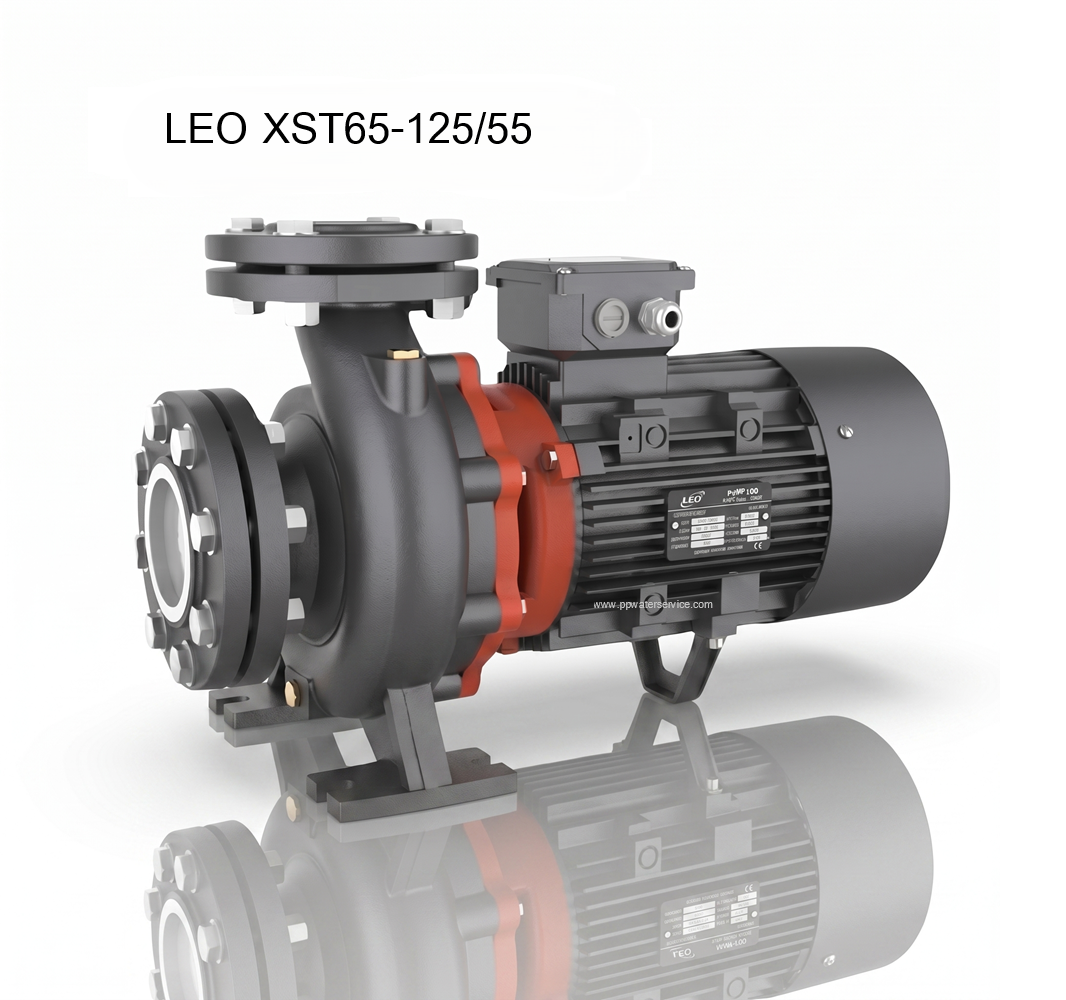

SKU : XST65-55
For water supply, agriculture, industry, and irrigation, providing both sufficient water volume and pressure for a wide range of applications
Brand : LEO
Share
Water flow rate: 800-2000 liters per minute
Maximum head:13-21meters
Motor size: 5.5 kW (7.5HP)
Electrical current: Three phase 380V
Suction pipe: 3 inches
Discharge pipe: 2.1/2 inch
Impeller: AISI 304/ HT 200
Mechanical seal according to DIN 24960
Insulation class: F
Protection class: IP 54
Efficiency according to CEI 2-3 (IEC 34.1)
Max. ambient temperature: +40℃
