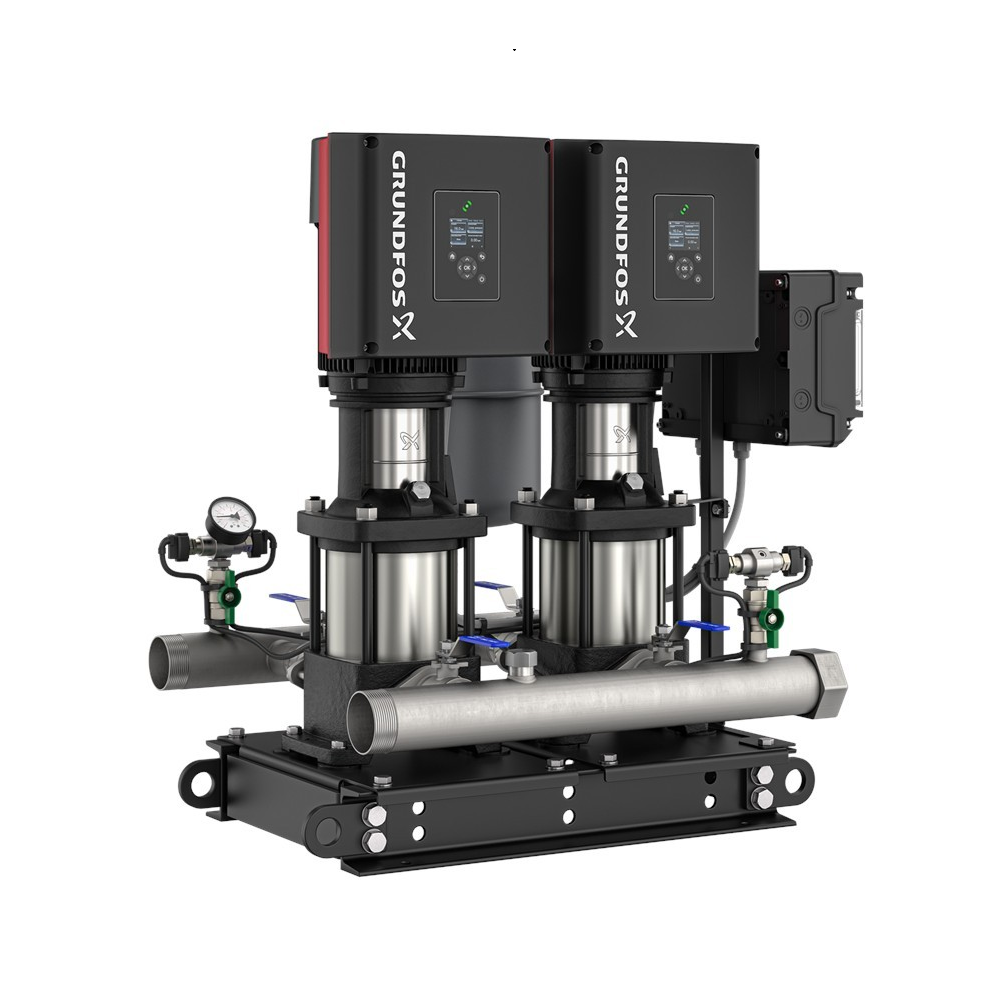

Booster Grundfos HYDRO MULTI-E 2 CRE 10-4 1.5kw 380V
Attribute:
SKU : E2CRE10-4
Suitable for corporate, office, high-rise buildings. Theater Rom Home Office Apartment Hospitals and industrial plants that use a lot of water
Categories : บูสเตอร์ปั๊มน้ำ Booster Pump , ปั๊มน้ำ , ปั้มน้ำ Grundfos/บูสเตอร์ ปั้มน้ำ ,
Brand : Grundfos
Share
Max. flow 36.2 m³/h
Min flow system 4.8 m³/h
Max. head 60 m
Pump name CRE 10-4
Number of pumps 2
Maximum ambient temperature 40 °C
Maximum operating pressure 10 bar
Maximum permissible inlet pressure PN 10 bar
Manifold inlet R 2 1/2
Manifold outlet R 2 1/2
Power (P2) main pump 1.5 kW
Mains frequency 50 / 60 Hz
Rated voltage 3 x 380-415 V
Rated current 6.2 A
IE Efficiency class IE5
Start. method electronically
Enclosure class (IEC 34-5) IP54
